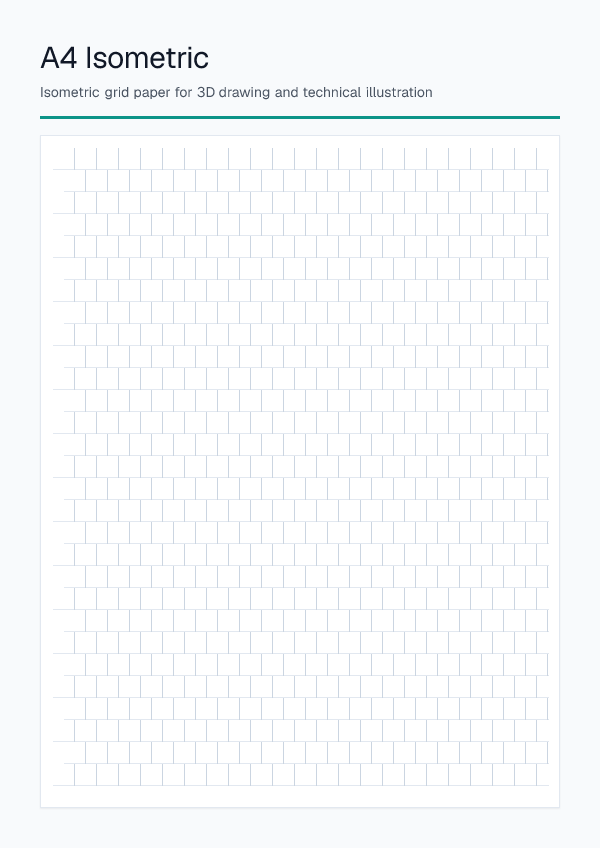

A4 Isometric Paper

How to Make A4 Isometric Paper

Step 1

Open the Isometric Paper generator

Start from the main Isometric Paper tool so you can adjust the printable instead of downloading a fixed image.

Step 2

Match the variation settings

Use the controls to match this A4 Isometric Paper use case, including paper size, layout, color, difficulty, or other available options.

Step 3

Preview the printable

Check the live preview to confirm spacing, labels, line weight, and printable area before creating the PDF.

Step 4

Download or print the PDF

Download the browser-generated PDF or print it directly. For exact sizing, use actual size or 100 percent in your printer dialog.

About A4 Isometric Paper

A4 isometric paper is essential for technical drawings, 3D designs, and engineering sketches. This free printable PDF is tailored for A4 printers and binders, featuring precise 120-degree angled grids. Unlike letter-size versions, our A4 isometric paper matches the international standard (210x297mm) with proper margins for European ring binders. The grid triangle size is adjustable in our generator, allowing you to choose between fine detail (5mm) or larger blocks (10mm). Perfect for architects, game designers, and students, this paper ensures accurate projections without distortion. Print true A4 isometric sheets at home or office using our optimized controls for margin and triangle size. Whether you're sketching a cityscape or plotting a mechanical part, these iso grids keep your lines aligned. Download your PDF instantly and start creating with confidence.

Best For

Architectural isometric drawings and axonometric projections
3D game level design and voxel art planning
Engineering sketches for mechanical parts
Mathematics graph plotting in three dimensions
Artists creating isometric pixel art or geometric patterns
Creating a A4 Isometric printable quickly

Recommended Settings

Triangle size: 5mm for detailed work, 10mm for larger sketches
Margin: 15mm for standard A4 binders, 10mm for no binding
Orientation: Portrait for typical use, Landscape for wide drawings
Color: Light gray grid (default) to keep lines visible but unobtrusive
Scale: 100% in PDF print dialog to maintain A4 dimensions
Start from the Isometric Paper generator linked above

When to Choose a Different Paper

This template is strongest when the grid size, paper size, and line style match your assignment or project. Consider a different printable when one of these caveats applies:

Perspective drawing (use 1-point or 2-point perspective paper instead)
Letter-size paper users (select US Letter version from PrintableMake)
High-precision CAD work requiring exact scaling (use vector software)
Left-handed users may find triangle orientation slightly uncomfortable

Frequently Asked Questions

What is the exact size of A4 isometric paper?

A4 isometric paper measures 210mm x 297mm (8.27 x 11.69 inches) with a 120-degree isometric grid. The margins default to 15mm on all sides for binder compatibility, but you can adjust them in the PrintableMake generator.

Can I change the triangle size on the grid?

Yes, the generator allows you to select triangle sizes from 3mm to 15mm. Common choices are 5mm for detailed drawings and 10mm for larger sketches. The grid lines remain perfectly aligned at 120 degrees.

Is this paper compatible with European ring binders?

Absolutely. The default margin of 15mm matches standard A4 binder hole punches. If your binder has different hole spacing, adjust the margin setting before downloading.

How do I print the PDF without scaling?

Open the PDF, go to print settings, and set 'Scale' to 100% or 'Actual Size'. Ensure your printer is set to A4 paper size. Do not select 'Fit to Page' as it may distort the grid.
