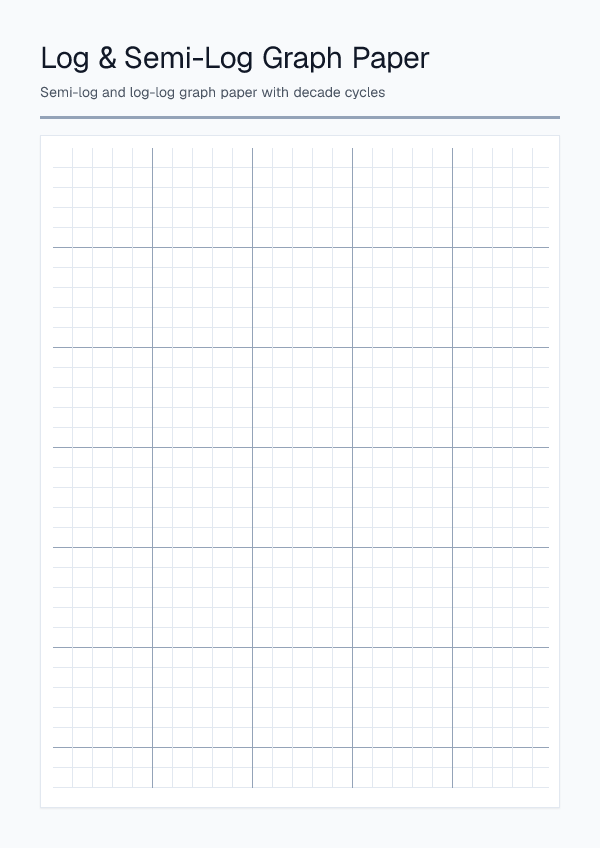

Live Preview
What is semi-log graph paper?
On semi-logarithmic paper, one axis uses a logarithmic scale (equal spacing for each factor of 10 — a decade) and the other stays linear. That turns exponential trends into straight lines and is standard for growth/decay, RC circuits, population models, and many frequency-domain sketches. Log–log paper uses log scales on both axes — useful for power laws and wide dynamic ranges in both dimensions.
How this generator lays out the grid
- Decades control how many powers of 10 span the log axis (for example, 4 decades = 1 to 10,000). Bold lines mark each power of 10; lighter lines subdivide each decade at 2–9 (true log spacing).
- Linear divisions set how many evenly spaced lines appear on the non-log axis (or on both axes in log–log mode, where both use decade cycles).
- Choose log on Y for the classic vertical log axis, or log on X when your independent variable is logarithmic (for example, frequency on the horizontal axis).
Printing tips
Landscape gives a wider linear axis for labeling. The PDF is drawn with vector lines so it stays sharp for overhead projectors, tablets, and large-format prints. Pair this page with ordinary graph paper when you need an all-linear grid for homework.
Lesson and lab ideas
- Biology lab: plot population growth or decay on semi-log Y; ask students why exponential data should look straight when the vertical axis is logarithmic.
- Physics / electronics: sketch magnitude vs frequency with log X (Bode-style) before using software — emphasize reading decades, not equal pixel spacing.
- Chemistry: compare reaction rates or pH-related curves; log–log mode supports power-law fits when both variables span orders of magnitude.
- Pair with engineering paper for mixed metric sketches and polar paper when the same dataset is clearer in r–θ form.
Common questions
Where is zero on the log axis? Logarithmic grids represent positive values only. Values approach smaller powers of 10 toward the bottom or left edge; zero and negative numbers are not on the scale — teach offsets or use linear paper for those cases.
Does this match my calculator's log mode? The grid shows equal steps per factor of 10, matching log₁₀ in most school settings. Always label axes with units and whether each tick is a raw value or a power of 10.
